FRANK ULTRA BANK STORAGE UB-15000Ws





AC POWER CONDITIONER FRANK


How it works
The shunt reactor is an absorber of reactive power, thus increasing the energy efficiency of the system. It is the most compact device commonly used for reactive power compensation in long high-voltage transmission lines and in cable system. Frank Acoustics has modified this system using a proprietary system for domestic abodes. The Frank Power Bank Storage component is essentially a scaled down version of this unique system for maintaining AC power to your Hi-fi system.



Power Line Conditioner

FRANK ULTRA BANK STORAGE UB-15000Ws


Specification:


Model:
Frank Ultra Bank Storage UB-15000Ws

AC Voltage:
220VAC - 270VAC 50/60Hz

AC Current Capacity:
Input/Output Capacity  15-20 Amps Loop True RMS 5KVA

Transformer :
Dual core low loss Shunt Autotransformer

AC Voltage Regulation:
NO

Features:
Cool running, noise free technology allows placement in critical listening environments.

Charging time:
 5 to 6 hour to full performance level.

Dimensions:
190mm H x 486mm W x 405mm D

Weight:
42.5 kg.

Power Consumption:
7-10 Watts

Made in Malaysia:
Damansara



*Specification subject to change without notice.




Price:

USD$ 2900.00


*Only available in malaysia




USA 20AMP SOCKET OUTPUT








CONNECTION


In operational use

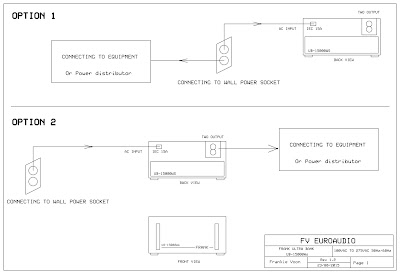

There are two typical operational modes in which you can deploy the FRANK  Ultra Bank within your system where:

       Option 1 is connected in parallel to the AC lines in your abode that is shared by your existing system. This means plugging the FRANK Ultra Bank into an unused AC outlet preferably near your AV/Hifi system. It does not have to be connected to the same AC spur as your AV/Hifi System from your DB (Distribution Box). As long as the FRANK Ultra Bank is on the same phase, any electronic or electric device will benefit from the effect of the FRANK Ultra Bank

       Option 2  is connected directly to the outlet off the FRANK Ultra Bank . The FRANK Ultra Bank  comes with a pair power outlets with an inbuilt EMI filter for the earth/ground. This also allows you to experiment with different varieties of power cords and power strips - we have no recommendations on this but trust that you will have some favourites that you may want to use with the FRANK Ultra Bank.



Frank Ultra Bank is handcrafted or custom made we only follow electrical safety regulation only.










Frank Ultra Bank 法蘭克功率儲存器的工作原理:
並聯電抗器是一個「無功功率吸收器」,它的使用會提高一個系統裏能量的效率。這個精簡的設施最常被用在長距離,高電壓的電流傳輸中,以達到無功功率補償的目的。


Frank Acoustics 法蘭克音學使用獨有的技術把這個科技蛻化成適合家用的器材。Frank Ultra Bank法蘭克功率儲存器實質上是這獨特科技的簡化版,以其能達到維持音響系統裏的交流電的目的。
